| Specifications |
|
| Material |
BK7 |
| Dimension Tolerance |
+0.0/-0.2mm |
| Thickness Tolerance |
±0.2mm |
| Clear Aperture |
>90% |
| Flatness |
Refer to below list |
| Surface Quality |
60/40 scratch and dig |

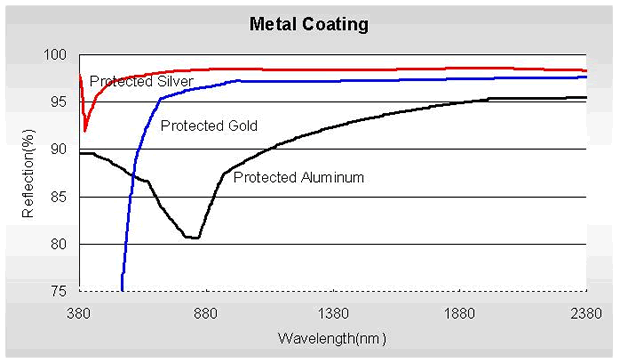

| Coating |
Metal coating on one surface, rear surface uncoated
Protected Al: Ravg>87%@400-1200nm
Protected Ag: Ravg>95%@400-12000nm
Protected Au: Ravg>98%@2000-12000nm |
| Damage Threshold |
>1J/cm2, 20ns, 20Hz, @1064nm | |
| |
| |
|
|
| |
|
Standard Products Series
|
Part No. |
Coating |
Flatness |
Diameter(mm) |
Thickness(mm) |
|
MLM325 |
AL Protected |
λ/5 |
25.4 |
3.0 |
|
MLM625 |
AL Protected |
λ/10 |
25.4 |
6.35 |
|
MGM325 |
AG Protected |
λ/5 |
25.4 |
3.0 |
|
MGM625 |
AG Protected |
λ/10 |
25.4 |
6.35 |
|
MUM325 |
AU Protected |
λ/5 |
25.4 |
3.0 |
|
MUM625 |
AU Protected |
λ/10 |
25.4 |
6.35 | | | |
|
