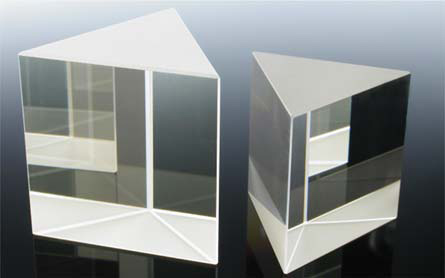

| Brewster prism is one kind of dispersion prism, it is normally used to separate two wavelengths following the same beam path. Brewster prism is designed specifically for intra-cavity laser application, the beam enters and exits the prism at Brewster's angle, minimizing intra-cavity losses. |
| |
| |
|
Material |
BK7, Fused Silica, SF glass |
|
Dimension Tolerance |
+0/-0.2mm |
|
Clear Aperture |
>90% |
|
Angle Tolerance |
<5 arc minutes |
|
Surface Quality |
60/40 scratch and dig |
|
Flatness |
<λ/4@632.8nm |
|
Chamfer |
Protective |
|
Coating |
None |  |
| |
| | | |
|
